á921ñWATER DETERMINATION
Many Pharmacopeial articles either are hydrates or contain water in adsorbed form.As a result,the determination of the water content is important in demonstrating compliance with the Pharmacopeial standards.Generally one of the methods given below is called for in the individual monograph,depending upon the nature of the article.In rare cases,a choice is allowed between two methods.When the article contains water of hydration,the Method I(Titrimetric),the Method II(Azeotropic),or the Method III(Gravimetric)is employed,as directed in the individual monograph,and the requirement is given under the heading Water.
The heading Loss on drying (see Loss on Drying á731ñ)is used in those cases where the loss sustained on heating may be not entirely water.

METHOD I(TITRIMETRIC)
Determine the water by Method Ia,unless otherwise specified in the individual monograph.
Method Ia (Direct Titration)
Principle— The titrimetric determination of water is based upon the quantitative reaction of water with an anhydrous solution of sulfur dioxide and iodine in the presence of a buffer that reacts with hydrogen ions.
In the original titrimetric solution,known as Karl Fischer Reagent,the sulfur dioxide and iodine are dissolved in pyridine and methanol.The test specimen may be titrated with the Reagentdirectly,or the analysis may be carried out by a residual titration procedure.The stoichiometry of the reaction is not exact,and the reproducibility of a determination depends upon such factors as the relative concentrations of the Reagentingredients,the nature of the inert solvent used to dissolve the test specimen,and the technique used in the particular determination.Therefore,an empirically standardized technique is used in order to achieve the desired accuracy.Precision in the method is governed largely by the extent to which atmospheric moisture is excluded from the system.The titration of water is usually carried out with the use of anhydrous methanol as the solvent for the test specimen;however,other suitable solvents may be used for special or unusual test specimens.
Apparatus— Any apparatus may be used that provides for adequate exclusion of atmospheric moisture and determination of the endpoint.In the case of a colorless solution that is titrated directly,the endpoint may be observed visually as a change in color from canary yellow to amber.The reverse is observed in the case of a test specimen that is titrated residually.More commonly,however,the endpoint is determined electrometrically with an apparatus employing a simple electrical circuit that serves to impress about 200mVof applied potential between a pair of platinum electrodes immersed in the solution to be titrated.At the endpoint of the titration a slight excess of the reagent increases the flow of current to between 50and 150microamperes for 30seconds to 30minutes,depending upon the solution being titrated.The time is shortest for substances that dissolve in the reagent.With some automatic titrators,the abrupt change in current or potential at the endpoint serves to close a solenoid-operated valve that controls the buret delivering the titrant.Commercially available apparatus generally comprises a closed system consisting of one or two automatic burets and a tightly covered titration vessel fitted with the necessary electrodes and a magnetic stirrer.The air in the system is kept dry with a suitable desiccant,and the titration vessel may be purged by means of a stream of dry nitrogen or current of dry air.
Reagent— Prepare the Karl Fischer Reagent as follows.Add 125g of iodine to a solution containing 670mLof methanol and 170mLof pyridine,and cool.Place 100mLof pyridine in a 250-mLgraduated cylinder,and,keeping the pyridine cold in an ice bath,pass in dry sulfur dioxide until the volume reaches 200mL.Slowly add this solution,with shaking,to the cooled iodine mixture.Shake to dissolve the iodine,transfer the solution to the apparatus,and allow the solution to stand overnight before standardizing.One mLof this solution when freshly prepared is equivalent to approximately 5mg of water,but it deteriorates gradually;therefore,standardize it within 1hour before use,or daily if in continuous use.Protect from light while in use.Store any bulk stock of the reagent in a suitably sealed,glass-stoppered container,fully protected from light,and under refrigeration.
Acommercially available,stabilized solution of Karl Fischer type reagent may be used.Commercially available reagents containing solvents or bases other than pyridine or alcohols other than methanol may be used also.These may be single solutions or reagents formed in situ by combining the components of the reagents present in two discrete solutions.The diluted Reagentcalled for in some monographs should be diluted as directed by the manufacturer.Either methanol or other suitable solvent,such as ethylene glycol monomethyl ether,may be used as the diluent.
Test Preparation— Unless otherwise specified in the individual monograph,use an accurately weighed or measured amount of the specimen under test estimated to contain 10to 250mg of water.
Where the specimen under test is an aerosol with propellant,store it in a freezer for not less than 2hours,open the container,and test 10.0mLof the well-mixed specimen.In titrating the specimen,determine the endpoint at a temperature of 10or higher.
Where the specimen under test is capsules,use a portion of the mixed contents of not fewer than 4capsules.
Where the specimen under test is tablets,use powder from not fewer than 4tablets ground to a fine powder in an atmosphere of temperature and relative humidity known not to influence the results.
Where the monograph specifies that the specimen under test is hygroscopic,use a dry syringe to inject an appropriate volume of methanol,or other suitable solvent,accurately measured,into a tared container,and shake to dissolve the specimen.Using the same syringe,remove the solution from the container and transfer it to a titration vessel prepared as directed for Procedure.Repeat the procedure with a second portion of methanol,or other suitable solvent,accurately measured,add this washing to the titration vessel,and immediately titrate.Determine the water content,in mg,of a portion of solvent of the same total volume as that used to dissolve the specimen and to wash the container and syringe,as directed for Standardization of Water Solution for Residual Titrations,and subtract this value from the water content,in mg,obtained in the titration of the specimen under test.Dry the container and its closure at 100for 3hours,allow to cool in a desiccator,and weigh.Determine the weight of specimen tested from the difference in weight from the initial weight of the container.
Standardization of the Reagent— Place enough methanol or other suitable solvent in the titration vessel to cover the electrodes,and add sufficient Reagentto give the characteristic endpoint color,or 100±50microamperes of direct current at about 200mVof applied potential.
For determination of trace amounts of water (less than 1%),sodium tartrate may be used as a convenient water reference substance.Quickly add 150to 350mg of sodium tartrate (C4H4Na2O6·2H2O),accurately weighed by difference,and titrate to the endpoint.The water equivalence factor F,in mg of water per mLof reagent,is given by the formula:
2(18.02/230.08)(W/V),
in which 18.02and 230.08are the molecular weights of water and sodium tartrate dihydrate,respectively;Wis the weight,in mg,of sodium tartrate dihydrate;and Vis the volume,in mL,of the Reagentconsumed in the second titration.
For the precise determination of significant amounts of water (1%or more),use Purified Wateras the reference substance.Quickly add between 25and 250mg of water,accurately weighed by difference,from a weighing pipet or from a precalibrated syringe or micropipet,the amount taken being governed by the reagent strength and the buret size,as referred to under Volumetric Apparatus á31ñ.Titrate to the endpoint.Calculate the water equivalence factor,F,in mg of water per mLof reagent,by the formula:
W/V,
in which Wis the weight,in mg,of the water;and Vis the volume,in mL,of the reagent required.
Procedure— Unless otherwise specified,transfer 35to 40mLof methanol or other suitable solvent to the titration vessel,and titrate with the Reagentto the electrometric or visual endpoint to consume any moisture that may be present.(Disregard the volume consumed,since it does not enter into the calculations.)Quickly add the Test Preparation,mix,and again titrate with the Reagentto the electrometric or visual endpoint.Calculate the water content of the specimen,in mg,taken by the formula:
SF,
in which Sis the volume,in mL,of the Reagentconsumed in the second titration;and Fis the water equivalence factor of the Reagent.
Method Ib (Residual Titration)
Principle— See the information given in the section Principleunder Method Ia.In the residual titration,excess Reagentis added to the test specimen,sufficient time is allowed for the reaction to reach completion,and the unconsumed Reagentis titrated with a standard solution of water in a solvent such as methanol.The residual titration procedure is applicable generally and avoids the difficulties that may be encountered in the direct titration of substances from which the bound water is released slowly.
Apparatus,Reagent,and Test Preparation— Use Method Ia.
Standardization of Water Solution for Residual Titration— Prepare a Water Solutionby diluting 2mLof water with methanol or other suitable solvent to 1000mL.Standardize this solution by titrating 25.0mLwith the Reagent,previously standardized as directed under Standardization of the Reagent.Calculate the water content,in mg per mL,of the Water Solutiontaken by the formula:
V¢F/25,
in which V¢is the volume of the Reagentconsumed,and Fis the water equivalence factor of the Reagent.Determine the water content of the Water Solutionweekly,and standardize the Reagentagainst it periodically as needed.
Procedure— Where the individual monograph specifies that the water content is to be determined by Method Ib,transfer 35to 40mLof methanol or other suitable solvent to the titration vessel,and titrate with the Reagentto the electrometric or visual endpoint.Quickly add the Test Preparation,mix,and add an accurately measured excess of the Reagent.Allow sufficient time for the reaction to reach completion,and titrate the unconsumed Reagentwith standardized Water Solutionto the electrometric or visual endpoint.Calculate the water content of the specimen,in mg,taken by the formula:
F(X¢-XR),
in which Fis the water equivalence factor of the Reagent;X¢is the volume,in mL,of the Reagentadded after introduction of the specimen;Xis the volume,in mL,of standardized Water Solutionrequired to neutralize the unconsumed Reagent;and Ris the ratio,V¢/25(mLReagent/mLWater Solution),determined from the Standardization of Water Solution for Residual Titration.
Method Ic (Coulometric Titration)
Principle— The Karl Fischer reaction is used in the coulometric determination of water.Iodine,however,is not added in the form of a volumetric solution but is produced in an iodide-containing solution by anodic oxidation.The reaction cell usually consists of a large anode compartment and a small cathode compartment that are separated by a diaphragm.Other suitable types of reaction cells (e.g.,without diaphragms)may also be used.Each compartment has a platinum electrode that conducts current through the cell.Iodine,which is produced at the anode electrode,immediately reacts with water present in the compartment.When all the water has been consumed,an excess of iodine occurs,which usually is detected electrometrically,thus indicating the endpoint.Moisture is eliminated from the system by pre-electrolysis.Changing the Karl Fischer solution after each determination is not necessary since individual determinations can be carried out in succession in the same reagent solution.Arequirement for this method is that each component of the test specimen is compatible with the other components,and no side reactions take place.Samples are usually transferred into the vessel as solutions by means of injection through a septum.Gases can be introduced into the cell by means of a suitable gas inlet tube.Precision in the method is predominantly governed by the extent to which atmospheric moisture is excluded from the system;thus,the introduction of solids into the cell is not recommended,unless elaborate precautions are taken,such as working in a glove-box in an atmosphere of dry inert gas.Control of the system may be monitored by measuring the amount of baseline drift.This method is particularly suited to chemically inert substances like hydrocarbons,alcohols,and ethers.In comparison with the volumetric Karl Fischer titration,coulometry is a micro-method.
Apparatus— Any commercially available apparatus consisting of an absolutely tight system fitted with the necessary electrodes and a magnetic stirrer is appropriate.The instrument's microprocessor controls the analytical procedure and displays the results.Calibration of the instrument is not necessary,as the current consumed can be measured absolutely.
Reagent— See Reagentunder Method Ia.
Test Preparation— Where the specimen is a soluble solid,dissolve an appropriate quantity,accurately weighed,in anhydrous methanol or other suitable solvents.Liquids may be used as such or as accurately prepared solutions in appropriate anhydrous solvents.
Where the specimen is an insoluble solid,the water may be extracted using a suitable anhydrous solvent from which an appropriate quantity,accurately weighed,may be injected into the anolyte solution.Alternatively an evaporation technique may be used in which water is released and evaporated by heating the specimen in a tube in a stream of dry inert gas,this gas being then passed into the cell.
Procedure— Using a dry syringe,quickly inject the Test Preparation,accurately measured and estimated to contain 0.5to 5mg of water,or as recommended by the instrument manufacturer into the anolyte,mix,and perform the coulometric titration to the electrometric endpoint.Read the water content of the Test Preparationdirectly from the instrument's display,and calculate the percentage that is present in the substance.Perform a blank determination,and make any necessary corrections.

METHOD II(AZEOTROPIC—TOLUENE DISTILLATION)

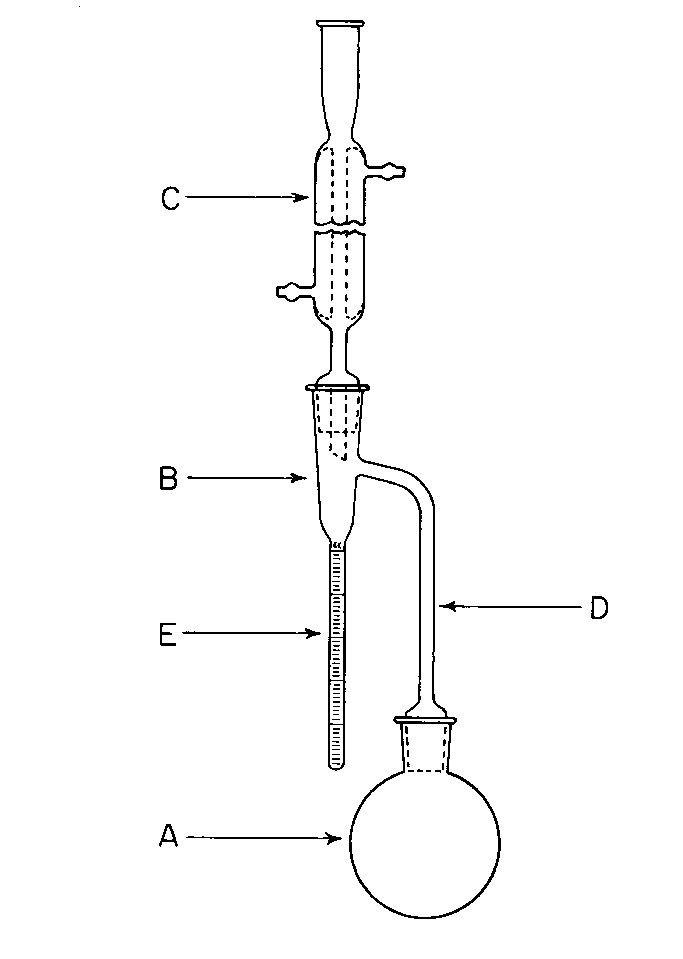

Apparatus— Use a 500-mLglass flask Aconnected by means of a trap Bto a reflux condenser Cby ground glass joints (see Figure).
Click to View Image
Toluene Moisture Apparatus
The critical dimensions of the parts of the apparatus are as follows.The connecting tube Dis 9to 11mm in internal diameter.The trap is 235to 240mm in length.The condenser,if of the straight-tube type,is approximately 400mm in length and not less than 8mm in bore diameter.The receiving tube Ehas a 5-mLcapacity,and its cylindrical portion,146to 156mm in length,is graduated in 0.1-mLsubdivisions,so that the error of reading is not greater than 0.05mLfor any indicated volume.The source of heat is preferably an electric heater with rheostat control or an oil bath.The upper portion of the flask and the connecting tube may be insulated.
Clean the receiving tube and the condenser with chromic acid cleansing mixture,thoroughly rinse with water,and dry in an oven.Prepare the toluene to be used by first shaking with a small quantity of water,separating the excess water,and distilling the toluene.
Procedure— Place in the dry flask a quantity of the substance,weighed accurately to the nearest centigram,which is expected to yield 2to 4mLof water.If the substance is of a pasty character,weigh it in a boat of metal foil of a size that will just pass through the neck of the flask.If the substance is likely to cause bumping,add enough dry,washed sand to cover the bottom of the flask,or a number of capillary melting-point tubes,about 100mm in length,sealed at the upper end.Place about 200mLof toluene in the flask,connect the apparatus,and fill the receiving tube Ewith toluene poured through the top of the condenser.Heat the flask gently for 15minutes and,when the toluene begins to boil,distill at the rate of about 2drops per second until most of the water has passed over,then increase the rate of distillation to about 4drops per second.When the water has apparently all distilled over,rinse the inside of the condenser tube with toluene while brushing down the tube with a tube brush attached to a copper wire and saturated with toluene.Continue the distillation for 5minutes,then remove the heat,and allow the receiving tube to cool to room temperature.If any droplets of water adhere to the walls of the receiving tube,scrub them down with a brush consisting of a rubber band wrapped around a copper wire and wetted with toluene.When the water and toluene have separated completely,read the volume of water,and calculate the percentage that was present in the substance.

METHOD III(GRAVIMETRIC)
Procedure for Chemicals— Proceed as directed in the individual monograph preparing the chemical as directed under Loss on Drying á731ñ.
Procedure for Biologics— Proceed as directed in the individual monograph.
Procedure for Articles of Botanical Origin— Place about 10g of the drug,prepared as directed (see Methods of Analysisunder Articles of Botanical Origin á561ñ)and accurately weighed,in a tared evaporating dish.Dry at 105for 5hours,and weigh.Continue the drying and weighing at 1-hour intervals until the difference between two successive weighings corresponds to not more than 0.25%.
